Product Name:SAE FLANGE 3000PSI CONE 61
Model:87311-RW



Online Service
E-mail Us
本产品没有PDF可供下载
Skype
  • Product Description
  • America One Piece Hose Fitting Index

PART NO.

FLANGE SIZE

HOSE BORE

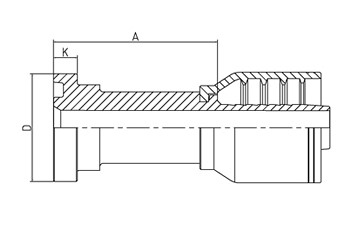

DIMENSIONS

DN

DASH

A

D

K

87311-08-08RW

1/2"

13

08

46

30.2

6.73

87311-12-08RW

3/4"

13

08

47

38.1

6.73

87311-12-10RW

3/4"

16

10

48

38.1

6.73

87311-12-12RW

3/4"

19

12

48

38.1

6.73

87311-12-16RW

3/4"

25

16

49

38.1

6.73

87311-16-12RW

1"

19

12

51

44.4

8

87311-16-16RW

1"

25

16

52

44.4

8

87311-16-20RW

1"

32

20

53

44.4

8

87311-20-16RW

1.1/4"

25

16

57

50.8

8

87311-20-20RW

1.1/4"

32

20

58

50.8

8

87311-24-20RW

1.1/2"

32

20

68

60.3

8

87311-24-24RW

1.1/2"

38

24

68

60.3

8

87311-32-24RW

2"

38

24

70

71.4

9.53

87311-32-32RW

2"

51

32

70

71.4

9.53

注:1. 表中代号用于编织软管.  2、如需用于缠绕软管代号改为  87312-XX-XXRW.
