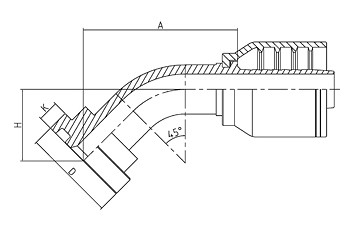

Product Name:45° SAE FLANGE 3000PSI CONE 61
Model:87341-RW



Online Service
E-mail Us
本产品没有PDF可供下载
Skype
  • Product Description
  • America One Piece Hose Fitting Index

PART NO.

FLANGE SIZE

HOSE BORE

DIMENSIONS

DN

DASH

A

D

K

H

87341-08-08RW

1/2"

13

08

55.5

30.2

6.73

23

87341-12-12RW

3/4"

19

12

71

38.1

6.73

28

87341-16-12RW

1"

19

12

71

44.4

8

28

87341-16-16RW

1"

25

16

82

44.4

8

29.4

87341-20-16RW

1.1/4"

25

16

82

50.8

8

29.4

87341-20-20RW

1.1/4"

32

20

94.5

50.8

8

33.8

87341-24-20RW

1.1/2"

32

20

94.5

60.3

8

33.8

87341-24-24RW

1.1/2"

38

24

109.9

60.3

8

40.4

87341-32-24RW

2"

38

24

109.9

71.4

9.53

40.4

87341-32-32RW

2"

51

32

127

71.4

9.53

46.3

注：1. 表中代号用于编织软管.  2、如需用于缠绕软管代号改为  87342-XX-XXRW.
