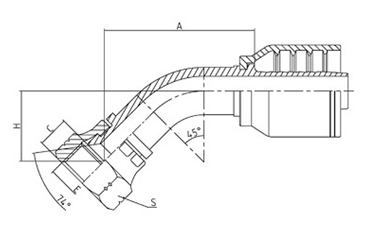

Product Name:45° JIC FEMAIL 74° CONE SEAT SAE J514
Model:26741-RW



Online Service
E-mail Us
本产品没有PDF可供下载
Skype
  • Product Description
  • America One Piece Hose Fitting Index



PART NO.

E

HOSE BORE

DIMENSIONS

THREAD

DN

DASH

A

H

C

S

26741-04-04RW

7/16"X20

6

4

38

15.1

9

15

26741-05-05RW

1/2"X20

8

5

42

17

9.5

17

26741-06-05RW

9/16"X18

8

5

42

17

10.5

19

26741-06-06RW

9/16"X18

10

6

45.5

20

10.5

19

26741-08-06RW

3/4"X16

10

6

46.6

21

11

24

26741-08-08RW

3/4"X16

13

8

56.2

23.7

11

24

26741-10-08RW

7/8"X14

13

8

57

24

13

27

26741-10-10RW

7/8"X14

16

10

65

25.3

13

27

26741-12-10RW

1.1/16"X12

16

10

66.5

27.1

15

32

26741-12-12RW

1.1/16"X12

19

12

73

30.2

15

32

26741-14-12RW

1.3/16"X12

19

12

73

30.2

15

36

26741-16-12RW

1.5/16"X12

19

12

73

30.5

16

41

26741-16-16RW

1.5/16"X12

25

16

85

32.2

16

41

26741-20-20RW

1.5/8"X12

32

20

99

38.4

17

50

26741-24-24RW

1.7/8"X12

38

24

113

43.9

20

55

26741-32-32RW

2.1/2"X12

51

32

136.5

51.5

23.5

75

Note: 1 for use with braided hoses.  2. If use with spiral hose, the fitting series number is 26742-XX-XXRW.
