Home > America One Piece Hose Fitting > America One Piece Hose Fitting > SAE FLANGE 6000PSI CONE 62

America One Piece Hose Fitting > America One Piece Hose Fitting > SAE FLANGE 6000PSI CONE 62

Product Name:SAE FLANGE 6000PSI CONE 62
Model:87611-RW



Online Service
E-mail Us
本产品没有PDF可供下载
Skype
  • Product Description
  • America One Piece Hose Fitting Index

PART NO.

FLANGE SIZE

HOSE BORE

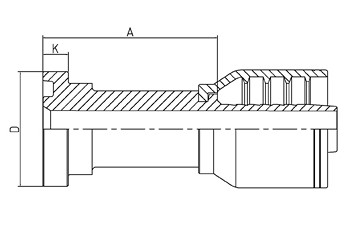

DIMENSIONS

DN

DASH

A

D

K

87611-08-08RW

1/2"

13

08

47

31.7

7.75

87611-12-12RW

3/4"

19

12

51

41.3

8.76

87611-16-16RW

1"

25

16

57

47.6

9.53

87611-20-20RW

1.1/4"

32

20

66

54

10.29

87611-24-24RW

1.1/2"

38

24

75

63.5

12.57

87611-32-24RW

2"

38

24

85

79.4

12.57

87611-32-32RW

2"

51

32

85

79.4

12.57

Note: 1. For use with braided hoses.  2. If use with spiral hose, the hose fitting series number is 87612-XX-XXRW.
