Home > America One Piece Hose Fitting > America One Piece Hose Fitting > 90° BSP FEMALE 60° CONE

PART NO.

THREAD

HOSE BORE

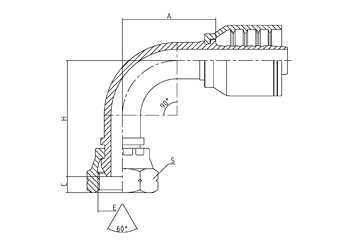

DIMENSIONS

E

DN

DASH

A

C

H

S

22691-02-04RW

G1/8"X28

6

04

30

5.5

29

14

22691-04-04RW

G1/4"X19

6

04

30

5.5

32

19

22691-06-04RW

G3/8"X19

6

04

30

6.3

33

22

22691-06-06RW

G3/8"X19

10

06

36.5

6.3

42

22

22691-08-08RW

G1/2"X14

13

08

43.5

7.5

50

27

22691-08-10RW

G1/2"X14

16

10

55

7.5

55.5

27

22691-10-08RW

G5/8"X14

13

08

43.5

9.5

50.5

30

22691-10-10RW

G5/8"X14

16

10

55

9.5

55

30

22691-12-10RW

G3/4"X14

16

10

55

10.9

56.5

32

22691-12-12RW

G3/4"X14

19

12

64

10.9

65

32

22691-16-16RW

G1"X11

25

16

74

11.7

74

41

22691-20-20RW

G1.1/4"X11

32

20

91.5

11

90

50

22691-24-24RW

G1.1/4"X11

38

24

109

13

105

55

22691-32-32RW

G2"X11

51

32

129

16

130

70

Note: 1 for use with braided hose. 2. If use with spiral hose, the fitting series number is 22692-XX-XXRW.
