Home > America One Piece Hose Fitting > America One Piece Hose Fitting > 45° SAE FLANGE 6000PSI CONE 62

America One Piece Hose Fitting > America One Piece Hose Fitting > 45° SAE FLANGE 6000PSI CONE 62

Product Name:45° SAE FLANGE 6000PSI CONE 62
Model:87641-RW



Online Service
E-mail Us
本产品没有PDF可供下载
Skype
  • Product Description
  • America One Piece Hose Fitting Index

PART NO.

FLANGE SIZE

HOSE BORE

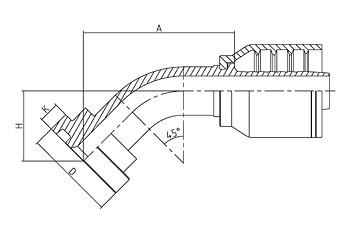

DIMENSIONS

DN

DASH

A

D

K

H

87641-08-08RW

1/2"

13

08

57.6

31.7

7.75

25.1

87641-12-12RW

3/4"

19

12

73.5

41.3

8.76

30.9

87641-16-16RW

1"

25

16

87

47.6

9.53

34.4

87641-20-20RW

1.1/4"

32

20

103

54

10.29

41.5

87641-24-24RW

1.1/2"

38

24

120

63.5

12.57

50.3

87641-32-32RW

2"

51

32

143

79.4

12.57

62

注:1表中代号用于编织软管.  2、如需用于缠绕软管代号改为 87642-XX-XXRW.
