PART NO.

THREAD

HOSE BORE

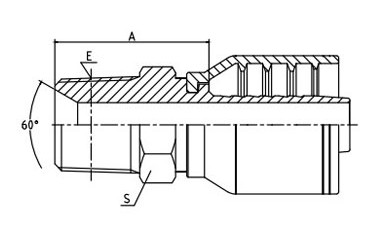

DIMENSIONS

E

DN

DASH

A

S

15611-02-04RW

Z1/8"X27

6

04

22.5

12

15611-04-04RW

Z1/4"X18

6

04

28

17

15611-06-04RW

Z3/8"X18

6

04

28

19

15611-06-05RW

Z3/8"X18

8

05

28

19

15611-06-06RW

Z3/8"X18

10

06

30

19

15611-08-06RW

Z1/2"X14

10

06

34.5

22

15611-08-08RW

Z1/2"X14

13

08

34.5

22

15611-12-10RW

Z3/4"X14

16

10

38

27

15611-12-12RW

Z3/4"X14

19

12

38.5

27

15611-12-16RW

Z3/4"X14

25

16

38.5

32

15611-16-10RW

Z1"X11.5

16

10

45

36

15611-16-12RW

Z1"X11/5

19

12

45

36

15611-16-16RW

Z1"X11.5

25

16

45

36

15611-20-16RW

Z1.1/4"X11.5

25

16

49.5

46

15611-20-20RW

Z1.1/4"X11.5

32

20

49

46

15611-24-24RW

Z1.1/4"X11.5

38

24

51

50

15611-32-32RW

Z2"X11.5

51

32

55

65

Note:1.For use with braided hose. 2.If use with spiral hose,the fitting series number is 15612-XX-XXRW.
