Home > America One Piece Hose Fitting > America One Piece Hose Fitting > 90° SAE FLANGE 6000PSI CONE 62

America One Piece Hose Fitting > America One Piece Hose Fitting > 90° SAE FLANGE 6000PSI CONE 62

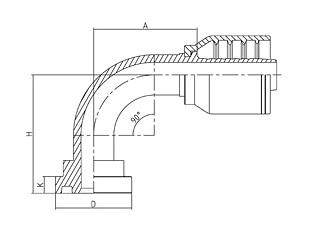

Product Name: 90° SAE FLANGE 6000PSI CONE 62
Model:87691-RW



Online Service
E-mail Us
本产品没有PDF可供下载
Skype
  • Product Description
  • America One Piece Hose Fitting Index



PART NO.

FLANGE SIZE

HOSE BORE

DIMENSIONS

DN

DASH

A

D

K

H

87691-08-08RW

1/2"

13

08

43.5

31.7

7.75

48.5

87691-12-12RW

3/4"

19

12

64

41.3

8.76

63

87691-16-16RW

1"

25

16

74

47.6

9.53

73

87691-20-20RW

1.1/4"

32

20

91.5

54

10.29

89.5

87691-24-24RW

1.1/2"

38

24

109

63.5

12.57

104

87691-32-32RW

2"

51

32

129

79.4

12.57

137

注: 1.表中代号用于编织软管.  2、如需用于缠绕软管代号改为 87692-XX-XXRW.
